Technical Specification:

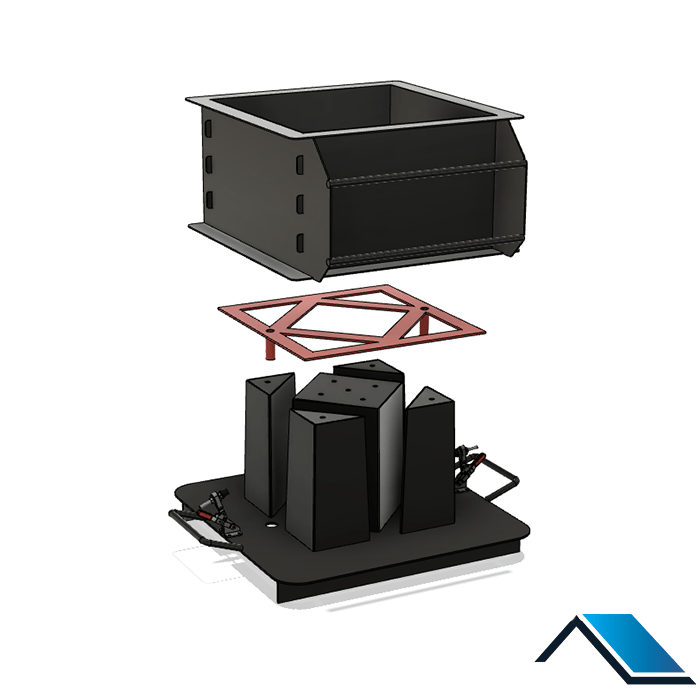

• 4 part block system
• Maximum height 4 storey (ground + 3 floors)
• Maximum span 3.6 metres column to column (higher spans with use of a ring beam to 6 metres can be achieved)
• Load bearing capacity 1.2 tonnes per square metre
• Mix ratio 5:4:2
• Demould while the Concrete is Wet for columns waffle slabs demoulded next day from the setting form and cured for up-to 28 days.
• Maximum Output: 50 waffles per 8 hours or 80 column blocks

Product Description:

High and Dry system creates a raised load-bearing platform for use in single or multi-storey construction. This ingenious system has been designed to reduce the quantity of concrete required by up to 40%! High and Dry also drastically saves on the amount of timber shuttering required to construct a solid raised platform and can also be used for fast floor construction. The end result gives a pleasant aesthetic coffered ceiling.

Key Benefits:

Fast setting floors and ceilings, saves up-to 40% of construction costs on average and 50% on construction time using less cement and reinforcement than a traditional RC slab, pre cast concrete columns are faster to construct than cast in situ columns.
