Roofing Systems
Technical Specification:
- High quality roof tile mould
- 24 hours curing time before re-use
- Weight 2.5 kg per tile (25 kg per square metre)
- Size 500x250mm (12.5 tiles per square metre)
- Thickness 8mm
- Thermal Conductivity 0.5 W/mc
- Roof Pitch 22.5 – 45 degrees
- Demould in 24 hours into a water curing tank for 7 days minimum
- Maximum Output: 500 tiles within an 8 hour period
Product Description:
Â
Lightweight concrete tiles provide a high quality, low cost roof. The roof is much cooler to live under than steel sheets and is far quieter during thunderstorms.
Â
Water collected from the roof will also be clean enough for drinking.
Â
A concrete tiled roof is also very durable as the tiles are unaffected by corrosion.
Key advantages: – Aesthetically beautiful , up-to 40 years durability, quiet during the rains.

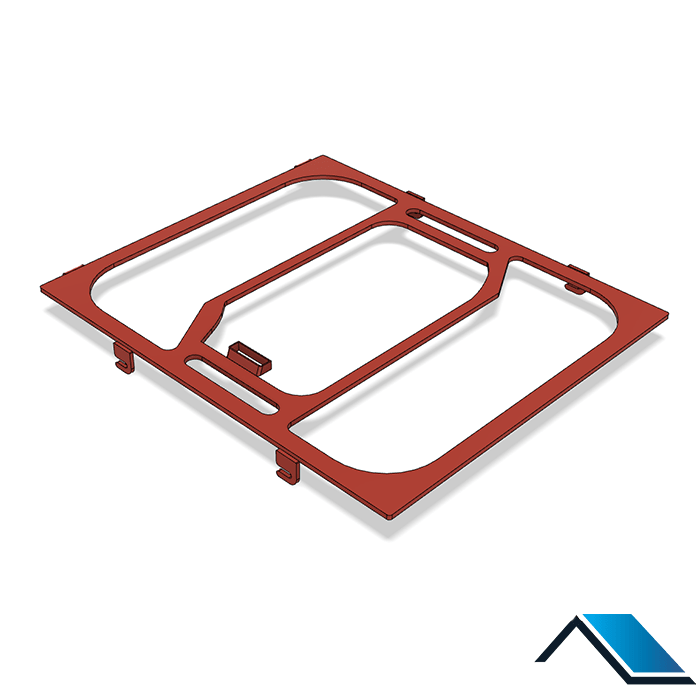

Roman2 Table Frame:
The Roman2 Table frame is Laser Cut from steel and powder coated for a durable protective finish. Made to fit both our manual and electric vibrating tables enabling you to create the 2D form of the Roman2 Tile.
Roman2 Mould:
High quality, durable Polypropylene mould, the vibrated concrete is transferred from the table to the mould, forming the tiles curved profile. These are a 24 hour setting mould so to produce the maximum output of 500 tiles a day would require 1000 moulds.

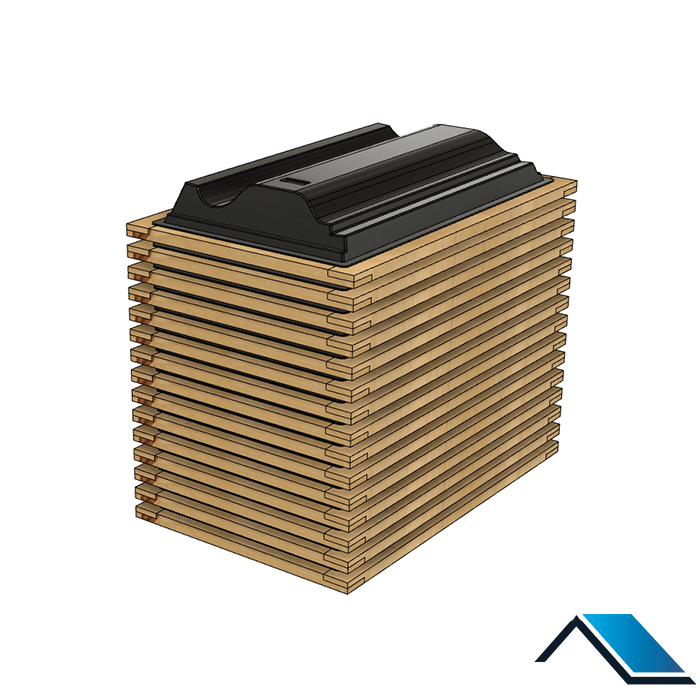

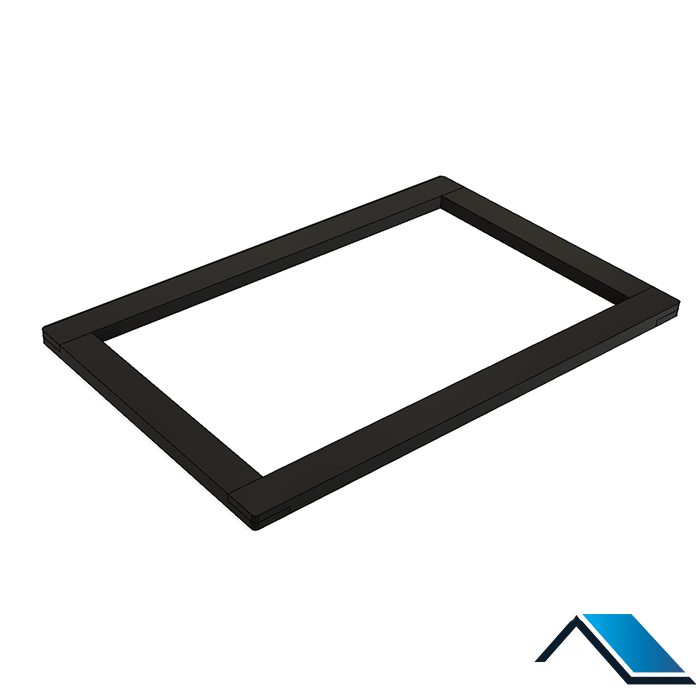

Roman2 Stacking Frame:
High quality, durable Polypropylene or wooden frame allowing the Roman2 moulds to be stacked on top of one another saving floor space in your factory.

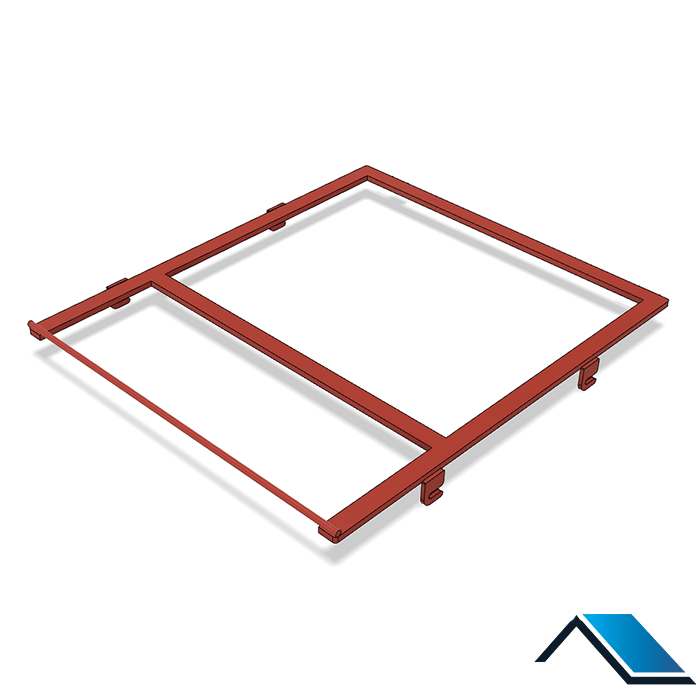

Ridge Tile Table Frame:
The Ridge Tile Table frame is made from steel and powder coated for a durable protective finish. Made to fit both our manual and electric vibrating tables enabling you to create the 2D form of the Ridge Tile.
Ridge Tile Mould and Platform:
High quality plywood and steel construction variable angle mould, letting you make ridge tiles tailored to suit roofs with a pitch between 22.5 and 45 degrees. Our Standard Platform creates Ridge Tiles for a roof pitch of 27 degrees.
Golden Rule:
The Golden Rule Tiling Template makes setting out roofing battens simple, leaving the perfect spacing for setting out your Roman2 Tiles.
Scoop:
Our high quality scoop is designed to make your life easy. Just 1 levelled scoop of concrete per Roman2 Tile and 3 scoops per Ridge Tile.
Dry Ridge:
The Dry Ridge Tool enables you to produce purpose made Roman2 Tiles for the top course, leaving minimal gap between the Roman2 and Ridge Tiles. Meaning less work on-site.
Second Nib:
The Second Nib Tool lets you add a second fixing nib to your tiles, letting you secure the tile at 2 points to the roof. Useful in high wind conditions.
H Frame:
The H Frame allows for the easy transfer of the formed vibrated concrete from the table to the mould.
