Glen Block System
Technical Specification:
- Main Stretcher Block weight: 9.4 kg
- Stretcher dimensions: 300mm x 300mm x 100mm
- Corner block weight: 15.2 KG
- Corner block dimensions: 450mm x 300mm x 100mm
- Stretcher mould: Injection Moulded Polypropylene. 1.075kg
- Corner mould: Gold standard Polyurethane and Plywood case. 7.5 kg
- Half block mould: Stainless Steel dividing insert fitted to the Polypropylene Stretcher Mould.
- Gabel Set: 6 Part Polyurethane inserts for a 24-degree angle cut roof creation.
Product Description:

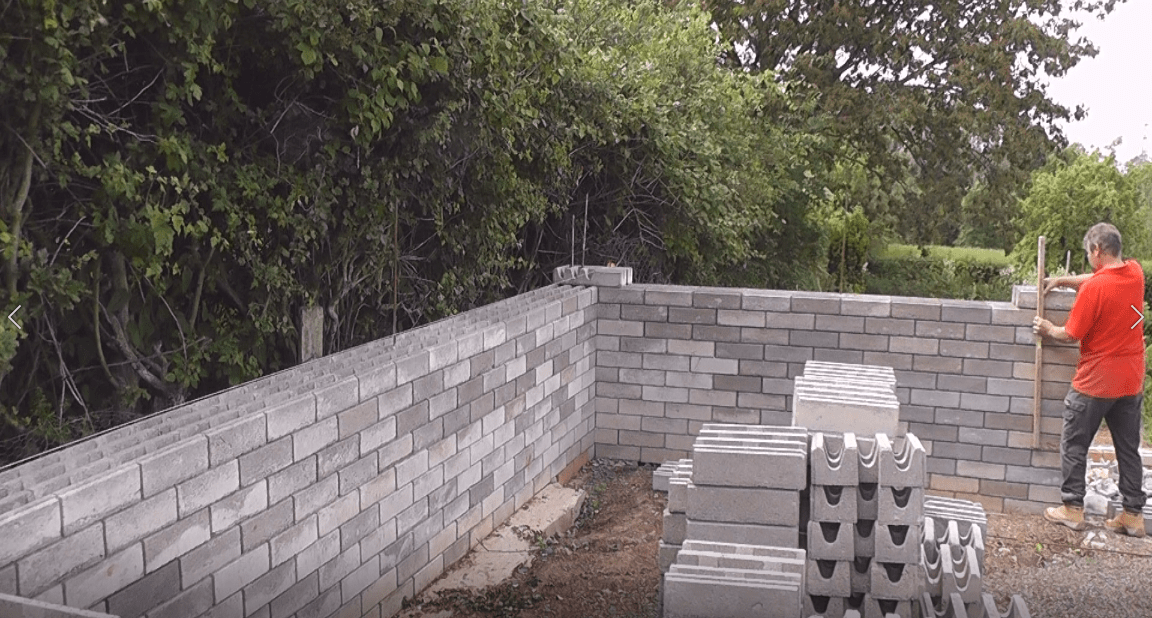

- Easy to lay dry stacking method enables unskilled workers to create blocks and build quickly.
- All on site cutting is eliminated saving time, skill, specialist cutting equipment and waste.
- The open honeycomb structure offers thermal insulation whilst allowing the installation of pipes, cables and rebar hidden within the wall.
- Our precision injection moulded components enable the most accurate production of block manufacturing.
- No specialist high end machinery investment is required. Use on any vibrating table.
- The simple fill the mould and stack production saves on floor space and aids the concrete curing process.
- A perfect traditional looking wall with 10mm even joints ready for pointing up or a render coat.
Stretcher Mould:
High quality Polypropylene setting mould for making the Standard Glen Block. You can cast 4 at a time on our manual vibrating table or up to 8 at a time on our electric table. This is a setting mould and so the Blocks are demoulded 24 hours after casting.
Corner Moulds:
2 different moulds for constructing corners made from polyurethane and plywood.
Half Block Mould:
Precision laser cut steel insert and clamping system to enable the production of half blocks, saving cutting and construction time.
Gabel Set:
6 Polyurethane inserts to allow for a full roof gable with a pitch of 24 degrees.
